Repro JBL CBT-70J-1-WH (2ks)
- [20.4. 2026]Smazat/ Upravit/ Topovat

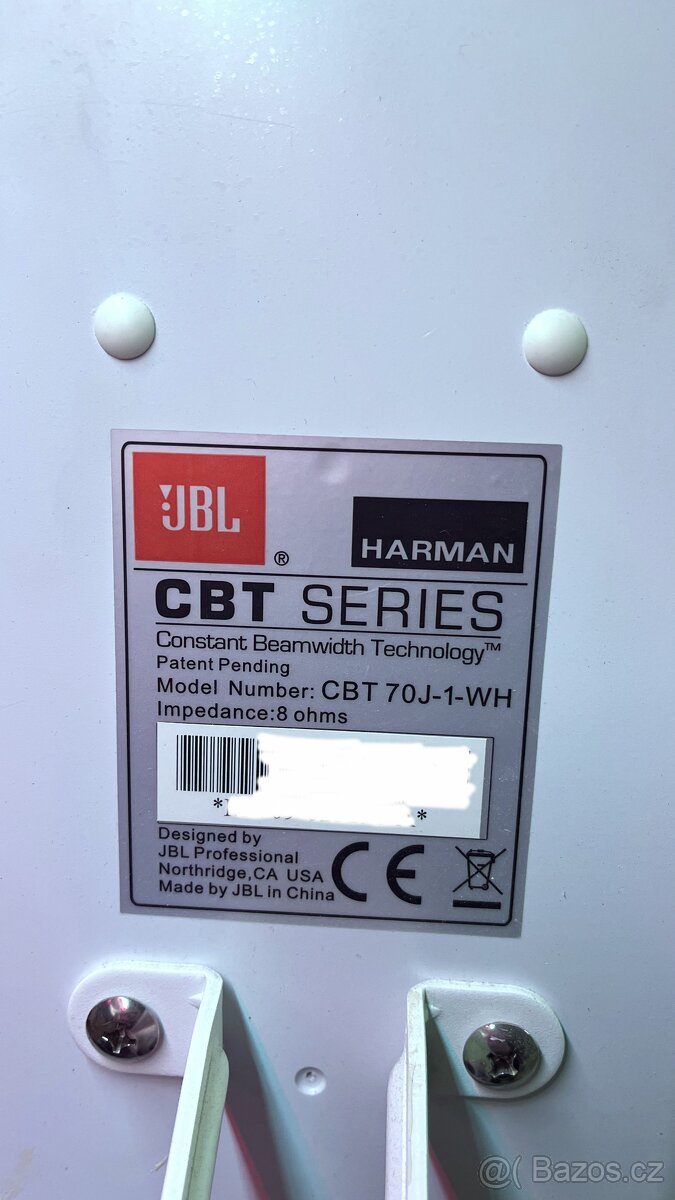

Prodám 2 ks reproduktorů JBL CBT-70J-1-WH
Jsou všetně držáků na zeď. Cena je za oba. Původní cena bylo 80 000 Kč.
General Specifications
Components Four 130 mm (5 in) LF drivers ; Sixteen 25 mm (1 in) HF drivers
Frequency Range (-10 dB) 60 Hz – 20 kHz
Vertical Coverage (Vertical Narrow Mode) 25° (2 kHz - 16 kHz) (±10°)
Vertical Coverage (Vertical Broad Mode) 45° (750 Hz - 16 kHz) (±10°)
Vertical Coverage (Horizontal) 150° (500 Hz – 8 kHz, ±20°)
Sensitivity (2.83V@ 1m) Narrow (speech mode) 98 dB (1 kHz - 8 kHz ) ; (music mode) 93 dB (300 Hz - 18 kHz)
Sensitivity (2.83V@ 1m) Broad (speech mode) 96 dB (1 kHz - 8 kHz) ; (music mode) 92 dB (300 Hz - 18 kHz)
Nominal Impedance 8 ohms
Power Capacity 500 W (2000 W peak), 2 hrs ; 350 W (1400 W peak), 100 hrs
Max SPL Narrow (speech mode) 125 dB cont ave (131 peak) ; (music mode) 120 dB cont ave (126 peak)
Max SPL Broad (speech mode) 123 dB cont ave (129 peak) ; (music mode) 119 dB cont ave (125 peak)
Low Frequency Drivers 4 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance, shielded.
High Frequency Drivers 16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Insert Points 10 M6 swivel (pan)/tilt (16 mm deep) insert points on back panel.
Mounting Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/-15 degree tilt, as well as 5 degree fixed increment points. Ten threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for OmniMount® 60.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Included Accessories Swivel (pan) / tilt wall bracket
Dimensions
Height 694 mm (27.4 in)
Width 170 mm (6.7 in)
Depth 237 mm (9.3 in)
Jsou všetně držáků na zeď. Cena je za oba. Původní cena bylo 80 000 Kč.
General Specifications
Components Four 130 mm (5 in) LF drivers ; Sixteen 25 mm (1 in) HF drivers
Frequency Range (-10 dB) 60 Hz – 20 kHz
Vertical Coverage (Vertical Narrow Mode) 25° (2 kHz - 16 kHz) (±10°)
Vertical Coverage (Vertical Broad Mode) 45° (750 Hz - 16 kHz) (±10°)
Vertical Coverage (Horizontal) 150° (500 Hz – 8 kHz, ±20°)
Sensitivity (2.83V@ 1m) Narrow (speech mode) 98 dB (1 kHz - 8 kHz ) ; (music mode) 93 dB (300 Hz - 18 kHz)
Sensitivity (2.83V@ 1m) Broad (speech mode) 96 dB (1 kHz - 8 kHz) ; (music mode) 92 dB (300 Hz - 18 kHz)
Nominal Impedance 8 ohms
Power Capacity 500 W (2000 W peak), 2 hrs ; 350 W (1400 W peak), 100 hrs
Max SPL Narrow (speech mode) 125 dB cont ave (131 peak) ; (music mode) 120 dB cont ave (126 peak)
Max SPL Broad (speech mode) 123 dB cont ave (129 peak) ; (music mode) 119 dB cont ave (125 peak)
Low Frequency Drivers 4 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance, shielded.
High Frequency Drivers 16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Insert Points 10 M6 swivel (pan)/tilt (16 mm deep) insert points on back panel.
Mounting Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/-15 degree tilt, as well as 5 degree fixed increment points. Ten threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for OmniMount® 60.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Included Accessories Swivel (pan) / tilt wall bracket
Dimensions
Height 694 mm (27.4 in)
Width 170 mm (6.7 in)
Depth 237 mm (9.3 in)
|
| |||||||||||||||||||||||||||||||
